Module - 4 ACL Concepts

2026-09-16 19:58

Tags: #enterpriseNetwork

Author: Duke Hsu

Topic

ACL definition
Permit and Deny
Process
Direction
Wildcard
Standard ACL
Extended ACL

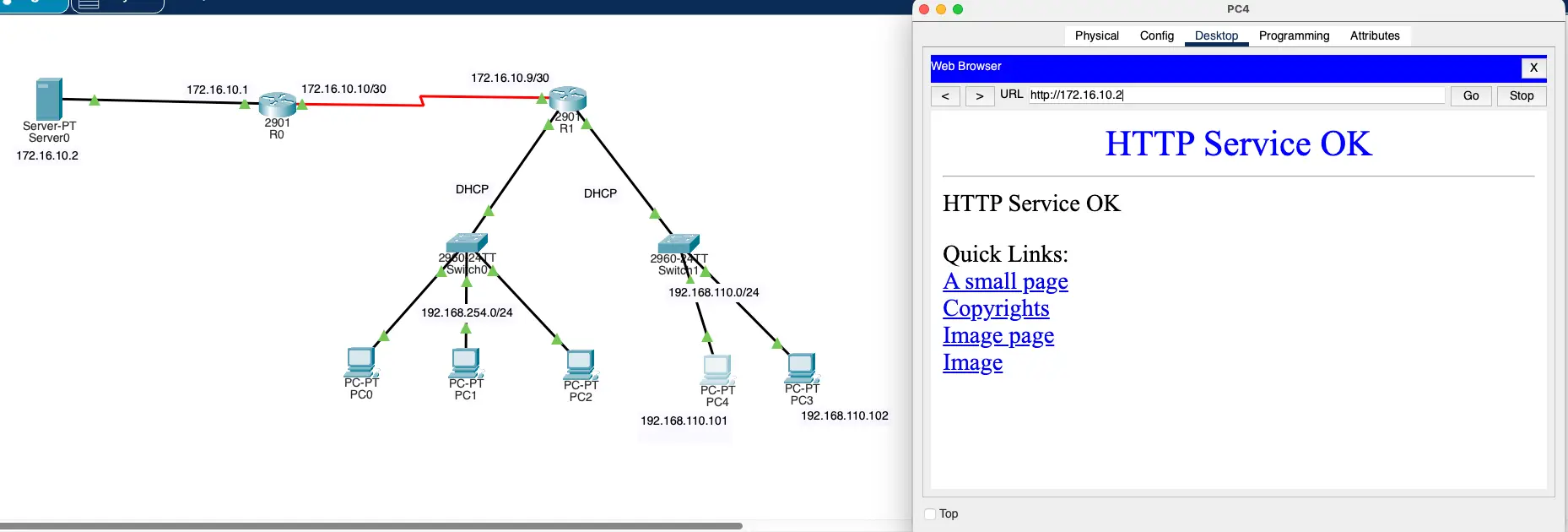

1. ACL - Access Control List

ACL means Access Control List.

An ACL is a series of IOS commands that filters packets using information in the packet header. This is called packet filtering.

Each permit or deny statement is an Access Control Entry (ACE), also called an ACL statement. By default, a router has no ACLs configured.

2. Permit / Deny

Permit: Allow a matching packet to be forwarded.
Deny: Discard a matching packet.
When an ACL is applied to an interface, the router checks packets against its ACEs.
ACLs can control traffic flow, limit network traffic, and provide a basic level of security for network access.

3. Process

3.1 Top to Bottom

The router checks ACEs in sequential order, starting at the top of the ACL.

For an inbound standard IPv4 ACL 1. The router reads the source IPv4 address from the packet header.

It compares that address with the first ACE.
If there is no match, it checks the next ACE.

3.2 First Match Wins

When a packet matches an ACE, the router follows that ACE: permit or deny. The router stops checking. It does not examine the remaining ACEs.

Rule order matters because the first matching ACE decides the result.

3.3 Implicit Deny

Every ACL ends with an implicit deny ACE.

This rule is hidden. It is not displayed in the configuration.
A packet that does not match any ACE is discarded.
An ACL must contain at least one permit statement. Otherwise, all traffic checked by that ACL is denied.

No match = deny.

4. Direction

Inbound and outbound describe the packet's direction at a router interface.

4.1 Inbound

The packet is entering the interface.

An inbound ACL filters the packet before it is routed to the outbound interface.

1	`Packet enters interface -> Inbound ACL -> Routing decision`

If the ACL discards the packet, the router does not need to perform a routing lookup. This saves processing work.

4.2 Outbound

The packet is leaving the interface.

An outbound ACL filters the packet after routing, regardless of which interface the packet entered.

1	`Routing decision -> Outbound ACL -> Packet leaves interface`

5. Wildcard

An IPv4 ACE uses a 32-bit wildcard mask to choose which address bits must match.

The rules below apply to individual bits.

5.1 0 = Match

A wildcard bit of 0 means the corresponding address bit must match.

To match one host, use 0.0.0.0. All 32 address bits must match.

Lecture example:

1	`access-list 10 permit 192.168.1.1 0.0.0.0`

This ACE permits only the source address 192.168.1.1.

The keyword host substitutes for the 0.0.0.0 wildcard mask.

5.2 1 = Ignore

A wildcard bit of 1 means the corresponding address bit is ignored.

Lecture example:

1	`access-list 10 permit 192.168.1.0 0.0.0.255`

In 0.0.0.255:

The first three octets contain only 0 bits, so they must match 192.168.1.
The last octet, 255, is binary 11111111, so all eight bits are ignored.
This ACE permits all hosts in 192.168.1.0/24.

The keyword any substitutes for the 255.255.255.255 wildcard mask. All address bits are ignored, so any address can match.

The lecture gives this shortcut for calculating a wildcard mask from a subnet mask:

255.255.255.255

- subnet mask

= wildcard mask

Subnet prefix	Subnet mask	Wildcard mask
/24	255.255.255.0	0.0.0.255
/28	255.255.255.240	0.0.0.15
/23	255.255.254.0	0.0.1.255

6. Standard ACL

Standard IPv4 ACL numbers: 1-99 and 1300-1999. Standard ACLs can also be named.

6.1 Source IP only

A standard ACL permits or denies packets based only on the source IPv4 address.

Source IP means where the packet comes from.
Standard ACLs filter at Layer 3.
They do not select traffic by destination IPv4 address, protocol type, or port.

6.2 Near Destination

Place a standard ACL as close to the destination as possible.

Because it checks only the source address, placing it too early can also block traffic going to other destinations.

Lecture example:

Block traffic from 192.168.10.0/24 to 192.168.30.0/24.
Still allow that source network to reach 192.168.31.0/24.
Apply the standard ACL outbound on R3's interface toward 192.168.30.0/24.
Applying it inbound on R3's S0/1/1 would also filter traffic to 192.168.31.0/24.

7. Extended ACL

Extended IPv4 ACL numbers: 100-199 and 2000-2699. Extended ACLs can also be named.

Extended ACLs provide finer control by using more packet information.

7.1 Source IP

Match the source IPv4 address: where the packet comes from.

In the lecture's placement example, the source network is 192.168.11.0/24.

7.2 Destination IP

Match the destination IPv4 address: where the packet is going.

In the same example, the destination network is 192.168.30.0/24.

7.3 Protocol

Match the protocol type.

For example, the lecture's named ACL, FTP-FILTER, uses TCP in its permit statements.

7.4 Port

Match source and destination TCP or UDP ports at Layer 4.

This allows the ACL to filter specific network services.

The lecture's FTP-FILTER example uses eq ftp and eq ftp-data to match destination services:

ip access-list extended FTP-FILTER

permit tcp 192.168.10.0 0.0.0.255 any eq ftp

permit tcp 192.168.10.0 0.0.0.255 any eq ftp-data

7.5 Near Source

Place an extended ACL as close to the source as possible.

Unwanted traffic is blocked early.
This saves bandwidth because denied traffic does not cross the entire network.
The organization can place ACLs only on devices it controls.

Lecture example:

Company A wants to deny Telnet and FTP traffic from 192.168.11.0/24 to Company B's 192.168.30.0/24.
All other traffic should be permitted.
Place the extended ACL on R1, which Company A controls.
Apply it inbound on the interface connected to 192.168.11.0/24 so only packets from that network are checked there.
