1. ACL Planning Concept and Hands-on

1.1 ACL Planning

All access control lists (ACLs) must be planned. When configuring a complex ACL, it is suggested that you

  • Use a text editor and write out the specifics of the policy to be implemented.
  • Add the IOS configuration commands to accomplish those tasks
  • Include remarks to document the ACL
  • Copy and pasts the commands onto the device
  • Always thoroughly test and ACL to ensure that it correctly applies the desired policy

2. Standard IPv4 ACLs and Hands-on

2.1 access-list command

Syntax

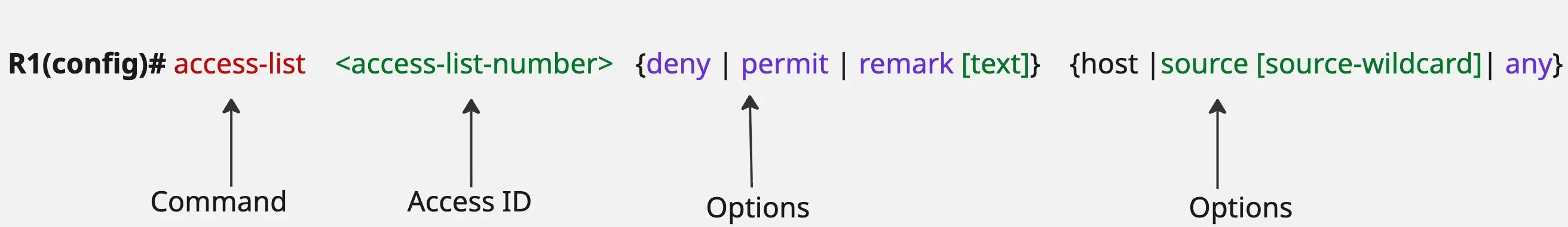

R1(config)# access-list <access-list-number> {deny | permit | remark [text]} {host |source [source-wildcard]| any}


2.2 Parameter table

Notes

Use the no access-list <access-list-number> global configuration command to remove a numbered standard ACL

Parameter Description
access-list-number Number range is 1 to 99 or 1300 to 1999
deny Denies access if the condition is matched
permit Permits access if the condition is matched
remark text Optional text entry for documentation purposes
source Identifies the source network or host address to filter
source-wildcard Optional 32-bit wildcard mask that is applied to the source
log Optional Generates and sends an informational message when the ACE is matched

2.3 Named and Numbered Standard IPv4 ACL

a. Command ip access-list standard

Use the ip access-list standard command to create a named standard ACL.

  • ACL names are alphanumeric, case sensitive, and must be unique
  • Capitalizing ACL names is not required but makes them stand out when viewing the running-config output

R1(config)# ip access-list standard <access-list-name>

Example:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
R1(config)#access-list 1 remark ALLOW-ACESS any
R1(config)#ip access-list standard ALLOW-ACESS
R1(config-std-nacl)#?
    <1-2147483647> Sequence Number

    default Set a command to its defaults

    deny Specify packets to reject

    exit Exit from access-list configuration mode

    no Negate a command or set its defaults

    permit Specify packets to forward

    remark Access list entry comment

Example 1:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
R1#config t
R1(config)#ip access-list standard DENY-ACCESS
R1(config-std-nacl)#?

    <1-2147483647> Sequence Number
    default Set a command to its defaults
    deny Specify packets to reject
    exit Exit from access-list configuration mode
    no Negate a command or set its defaults
    permit Specify packets to forward
    remark Access list entry comment

    R1(config-std-nacl)#remark ACE DENY host 192.168.110.101
    R1(config-std-nacl)#deny host 192.168.110.101
    R1(config-std-nacl)#exit

R1(config)#interface serial 0/0/0
    R1(config-if)#ip access-group DENY-ACCESS out
    R1(config-if)#end
R1#
R1#show running-config | section access
    ip access-group DENY-ACCESS out
    ip access-list standard DENY-ACCESS
    remark ACE DENY host 192.168.110.101
    deny host 192.168.110.101

R1#

Verify


b. Numbered Standard ACL


Example:

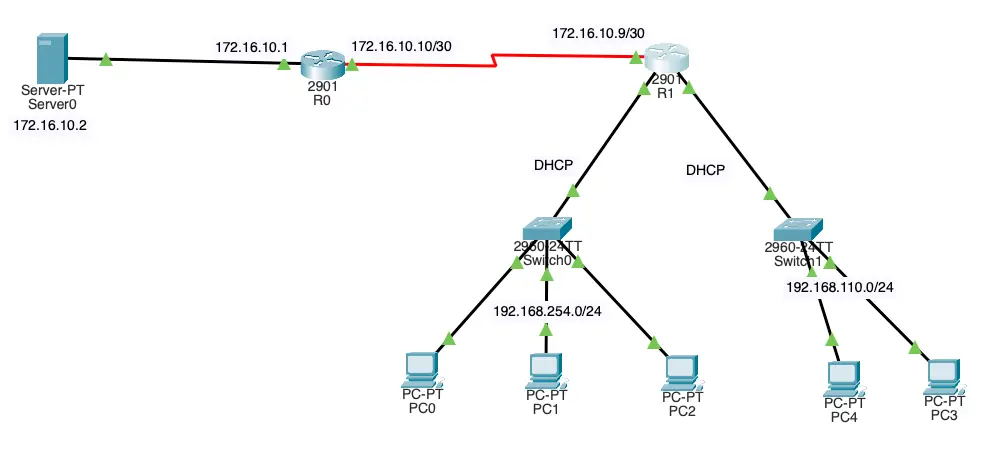

Permit traffic from host 192.168.110.101 and 192.168.254.0/24 network out interface serial 0/0/0 on router R1

IOS command

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
R1#config t
R1(config)#access-list 10 remark ACE permit ONLY host 192.168.110.101 to the internet
R1(config)#access-list 10 permit host 192.168.110.101

R1(config)#do show access-lists
    Standard IP access list 10
    10 permit host 192.168.110.101

R1(config)#access-list 10 remark ACE permit all host in LAN254
R1(config)#access-list 10 permit 192.168.254.0 0.0.0.255
R1(config)#do show access-lists
    Standard IP access list 10
    10 permit host 192.168.110.101
    20 permit 192.168.254.0 0.0.0.255

    R1(config)#interface serial 0/0/0
    R1(config-if)#ip access-group 10 out
    R1(config-if)#end


R1#show running-config | section access

    ip access-group 10 out
    access-list 10 remark ACE permit ONLY host 192.168.110.101 to the internet
    access-list 10 permit host 192.168.110.101
    access-list 10 remark ACE permit all host in LAN254
    access-list 10 permit 192.168.254.0 0.0.0.255

R1#show running-config

Building configuration...
version 15.1
no service timestamps log datetime msec
no service timestamps debug datetime msec
no service password-encryption


interface Serial0/0/0
ip address 172.168.10.9 255.255.255.252
ip access-group 10 out
clock rate 2000000

    access-list 10 remark ACE permit ONLY host 192.168.110.101 to the internet
    access-list 10 permit host 192.168.110.101
    access-list 10 remark ACE permit all host in LAN254
    access-list 10 permit 192.168.254.0 0.0.0.255

Verify

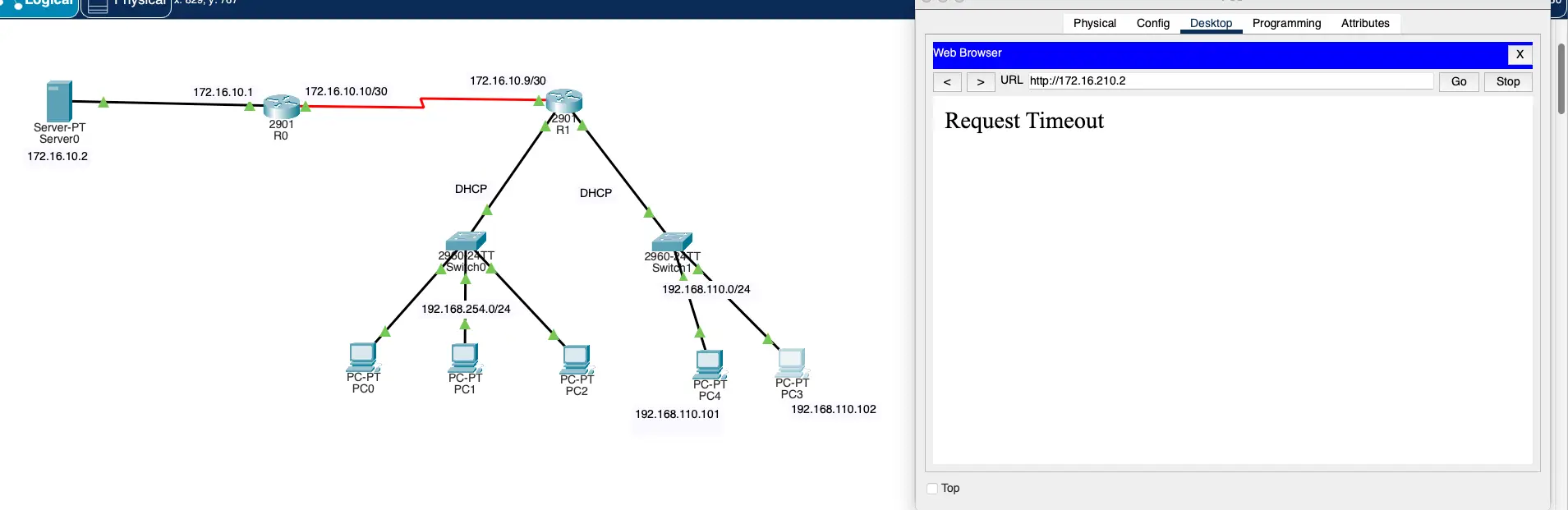

image.png Figure -1 PC 110.101 -ACL tester

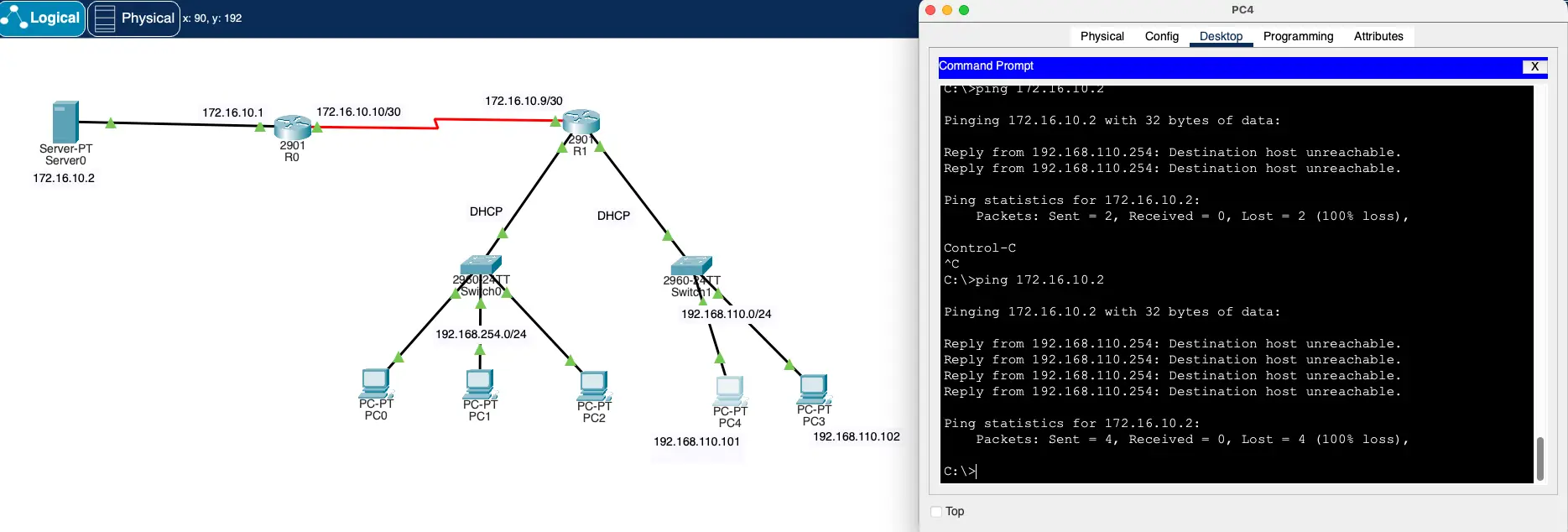

image.png Figure -2 PC 110.102 -ACL tester

2.4 Apply a Standard IPv4 ACL

a. Command ip access-group

After a standard IPv4 ACL is configured , it must be linked to an interface or feature

  • The ip access-group command is used to bind a numbered or named standard IPv4 ACL to an interface.
  • To remove an ACL from an interface , first enter the no ip access-group interface configuration command .

R1(config-if)# ip access-group <access-list-number | access-list-name> {in | out}

Example:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
R1(config)#interface gigabitEthernet 0/0
R1(config-if)#ip access-group 1 in
R1(config-if)#end

R1#show running-config | section access-group
    ip access-group 1 in

R1#show running-config | section access
    ip access-group 1 in
    access-list 1 remark ALLOW-ACESS any
    ip access-list standard ALLOW-ACESS

3. ACL Modification and Statistics

After an ACL is configured , it may need to be modified. ACLs with multiple ACEs can be complex to configure. Sometimes the configured ACE does not yield the expected behaviors.

Two methods to use when modifying an ACL:

  • Use a text editor
  • Use sequence numbers

3.1 Text Editor Method

ACLs with multiple ACEs should be created in a text editor. This allows you to plan the required ACEs, create the ACL, and then paste it into the router interface. It also simplifies the tasks to edit and fix an ACL.

To correct an error in an ACL:

  • Step 1 Copy the ACL from the running configuration and paste it into the text editor.
  • Step 2 Make the necessary edits or changes.
  • Step 3 Remove the perviously configured ACL on the router.
  • Step 4 Copy and paste the edited ACL back to the router.

3.2 Sequence Number Method

An ACL ACE can be deleted or added using the ACL sequence numbers.

  • Use the ip access-list standard command to edit an ACL
  • Statements cannot be overwritten using an existing sequence number
  • The current statement must be deleted first with the no 10 command .
  • Then the correct ACE can be added using sequence number.

3.2.1 Modify

Example:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
R1(config)#ip access-list standard DENY-ACCESS
R1(config-std-nacl)#?

    <1-2147483647> Sequence Number
    default Set a command to its defaults
    deny Specify packets to reject
    exit Exit from access-list configuration mode
    no Negate a command or set its defaults
    permit Specify packets to forward
    remark Access list entry comment

R1(config-std-nacl)#no 10
R1(config-std-nacl)#10 permit host 192.168.110.101
R1(config-std-nacl)#remark ACE Permit host 192.168.110.101 - by duke
R1(config-std-nacl)#end

R1#show ip access-lists
    Standard IP access list DENY-ACCESS
    10 permit host 192.168.110.101
    Standard IP access list PERMIT-ACCESS
    10 permit host 192.168.110.102 (6 match(es))

R1#config t
R1(config)#interface serial 0/0/0
R1(config-if)#ip access-group 10 out
R1(config-if)#end


R1#show running-config | section access-list
    ip access-list standard DENY-ACCESS
    remark ACE DENY host 192.168.110.101
    permit host 192.168.110.101
    remark ACE Permit host 192.168.110.101 - by duke
    ip access-list standard PERMIT-ACCESS
    remark ACE PERMIT host 192.168.110.102
    permit host 192.168.110.102

3.2.2 Append

Example：

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
R1#config t

R1(config)#ip access-list standard 1
R1(config-std-nacl)#?

    <1-2147483647> Sequence Number
    default Set a command to its defaults
    deny Specify packets to reject
    exit Exit from access-list configuration mode
    no Negate a command or set its defaults
    permit Specify packets to forward
    remark Access list entry comment

R1(config-std-nacl)#15 deny ?

    A.B.C.D Address to match
    any Any source host
    host A single host address

R1(config-std-nacl)#15 deny host 192.168.110.103
R1(config-std-nacl)#end


R1#show access-lists

    Standard IP access list DENY-ACCESS
    10 permit host 192.168.110.101
    Standard IP access list PERMIT-ACCESS
    10 permit host 192.168.110.102 (6 match(es))
    Standard IP access list 1
    15 deny host 192.168.110.103

3.3 ACL Statistics

The show access-lists command in the example shows statistics for each statement that has been matched

  • Matches
  • Note that the implied deny any statement does not display any statistic
  • To track how many implicit denied packets have been matched, you must manually configure the deny any command.
  • Use the clear access-list counters <access-list-nam> to clear the ACL statistics.

Example:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
R1#show ip access-lists
    Standard IP access list DENY-ACCESS
    10 permit host 192.168.110.101
    Standard IP access list PERMIT-ACCESS
    10 permit host 192.168.110.102 (6 match(es))
    Standard IP access list 1
    15 deny host 192.168.110.103 (3 match(es))


R1#clear ?

    aaa Clear AAA values
    access-list Clear access list statistical information
    arp-cache Clear the entire ARP cache
    cdp Reset cdp information
    frame-relay Clear Frame Relay information
    ip IP
    ipv6 IPv6
    line Reset a terminal line
    mac-address-table MAC forwarding table
    vtp Clear VTP items


R1#clear access-list counters 1

R1#show ip access-lists
    Standard IP access list DENY-ACCESS
    10 permit host 192.168.110.101
    Standard IP access list PERMIT-ACCESS
    10 permit host 192.168.110.102 (6 match(es))
    Standard IP access list 1
    15 deny host 192.168.110.103

4. Secure VTY Access

A standard ACL can secure remote administrative access to a device using the VTY lines by implementing the following two steps:

  • Create an ACL to identify which administrative hosts should be allowed remote access.
  • Apply the ACL to incoming traffic on the VTY lines.

R1(config-line)# access-class <access-list-number | access-list-name> {in | out}

4.1 Secure VTY Access Step by Step

Step 1 - Set username and password

R1(config)# username <user-name> secret <pass-word>

Step 2 - Set access-list standard Host

R1(config)# ip access-list standard <access-list-name>

Step 3 - Set ACL details

1
2
3
4
R1(config-std-nacl)# remark <remark-content>
R1(config-std-nacl)# permit <host-ip-address>
R1(config-std-nacl)# deny any
R1(config-std-nacl)# exit

Step 4 - Set VTY

1
2
3
4
5
R1(config)# line vty <number>  <number> //example line vty 0 4
R1(config-line)# login local
R1(config-line)# transport input telnet
R1(config-line)# access-class <acess-list-name> in
R1(config-line)# end

Example:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
R1#config t
R1(config)#username duke secret 12345

R1(config)#ip access-list standard ADMIN-PC
    R1(config-std-nacl)#remark Only Admin-PC allow access this router
    R1(config-std-nacl)#permit 192.168.254.101
    R1(config-std-nacl)#deny any
    R1(config-std-nacl)#exit

R1(config)#line
R1(config)#line vty 0 4

R1(config-line)#login local
R1(config-line)#transport input telnet
R1(config-line)#access-class ADMIN-PC ?

    in Filter incoming connections
    out Filter outgoing connections

R1(config-line)#access-class ADMIN-PC in
R1(config-line)#exit
R1(config)#enable secret admin //開啟特權模式
R1(config)#end

R1#


R1#show running-config | section line

    line con 0
    line aux 0
    line vty 0 4
    access-class ADMIN-PC in
    login local
    transport input telnet

R1#show access-lists
    Standard IP access list ADMIN-PC
    10 permit host 192.168.254.101
    20 deny any

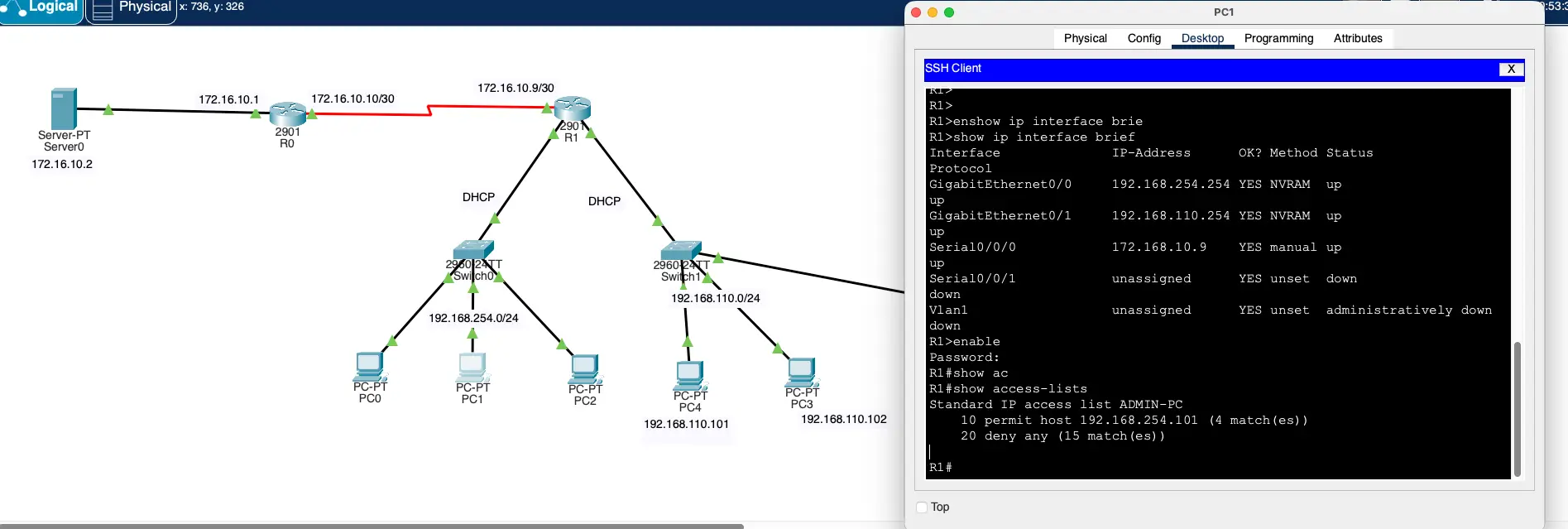

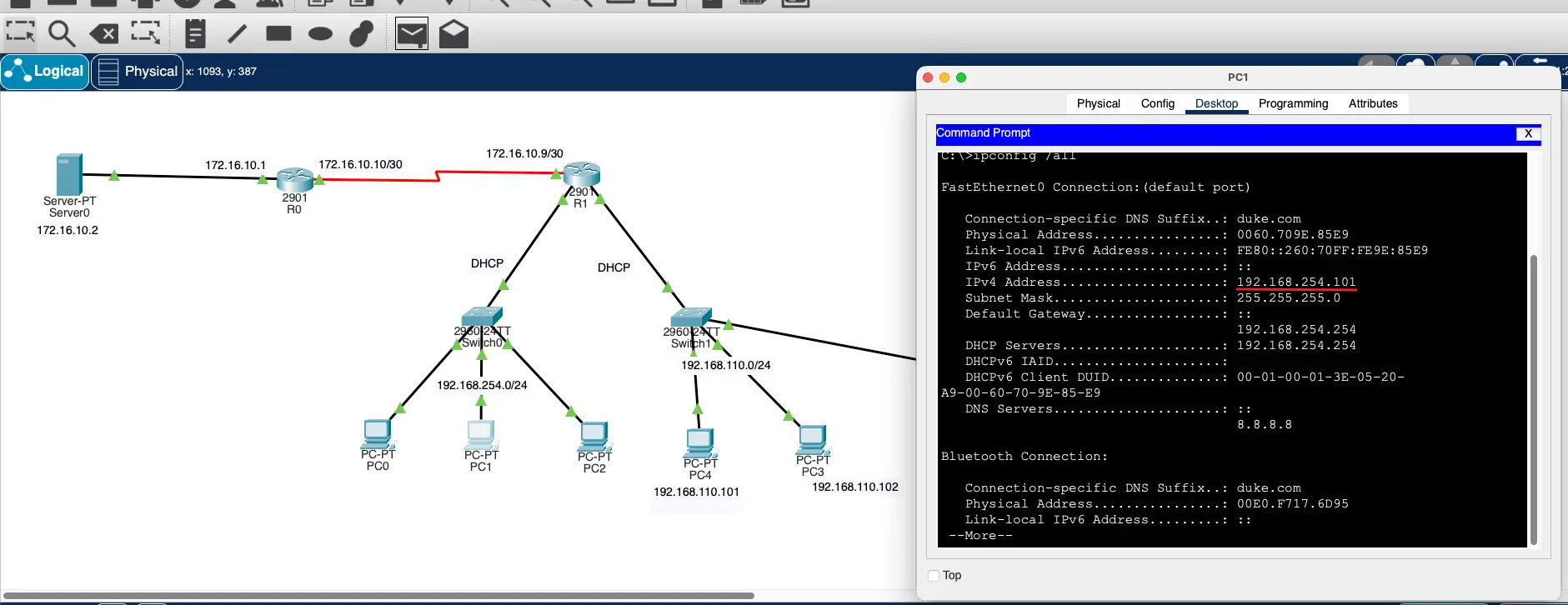

Verify



5. Extended IPv4 ACLs

Extended ACLs provide a greater degree of control. They can filter on source address, destination address, protocol (eg. ICMP, TCP, UDP, IP), and port number

Extended ACLs can filter on internet protocols and protst. Use the ? to get help when entering a complex ACE.

The four highlighted protocols are the most popular options. such as ICPM, IP, TCP, UDP.

5.1 Numbered Extended ACL

  • Created using the access-list <access-list-number> global configuration command

Example:

1
2
3
4
5
6
7
8
9
R1(config)# access-list 100 permit tcp any any eq 80
R1(config)# access-list 100 permit tcp any any eq 443
R1(config)# access-list 100 permit tcp any any eq 22
R1(config)# access-list 101 deny icmp host 192.168.110.101 host 192.168.110.254
R1(config)#access-list 101 permit icmp any any

R1(config)#interface G0/0
    R1(config-if)#ip access-group 110 in
    R1(config-if)#ip access-group 100 in

5.2 Named Extended ACL

  • Created using the ip access-list extended <access-list-name>

Example:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
R1#config t

Enter configuration commands, one per line. End with CNTL/Z.

R1(config)#ip access-list extended SURFING
    R1(config-ext-nacl)#remark Denys inside HTTP and HTTPS traffic
    R1(config-ext-nacl)#deny tcp 192.168.254.0 0.0.0.255 any eq www
    R1(config-ext-nacl)#deny tcp 192.168.254.0 0.0.0.255 any eq 443
    R1(config-ext-nacl)#exit



R1(config)#ip access-list extended BROWSING
    R1(config-ext-nacl)#remark Denys returning HTTP and HTTPS traffic
    R1(config-ext-nacl)#deny tcp any 192.168.254.0 0.0.0.255 established
    R1(config-ext-nacl)#exit


R1(config)#interface gigabitEthernet 0/0
    R1(config-if)#ip access-group SURFING in
    R1(config-if)#ip access-group BOWSING out
    R1(config-if)#end

R1#

%SYS-5-CONFIG_I: Configured from console by console

R1#show access-lists
    Extended IP access list SURFING
        10 deny tcp 192.168.254.0 0.0.0.255 any eq www (39 match(es))
        20 deny tcp 192.168.254.0 0.0.0.255 any eq 443 (45 match(es))
    Extended IP access list BROWSING
        10 deny tcp any 192.168.254.0 0.0.0.255 established

5.2.1 TCP Established Extended ACL

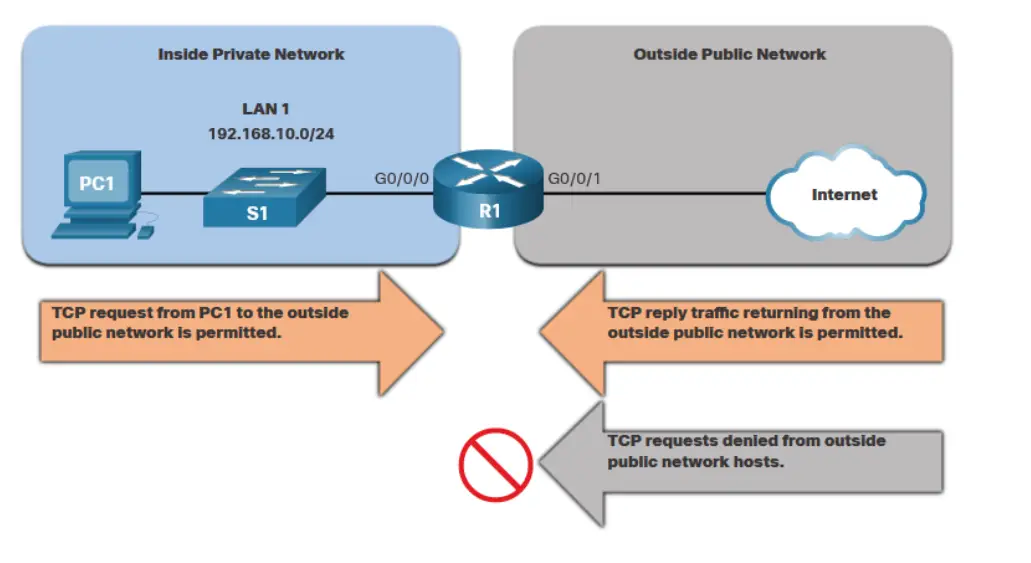

TCP can also perform basic stateful firewall services using the TCP established keyword.

  • The established keyword enables inside traffic to exit the inside private network and permits the returning reply traffic to enter the inside private network.

  • TCP traffic generated by an outside host and attempting to communicate with an inside host in denied.

1
2
3
4
R1(config)#ip access-list extended BROWSING
    R1(config-ext-nacl)#remark Denys returning HTTP and HTTPS traffic
    R1(config-ext-nacl)#deny tcp any 192.168.10.0 0.0.0.255 established
    R1(config-ext-nacl)#exit


5.2.2 Verify Extended ACLs (Count)

The show access-lists command can be used to confirm that the ACLs work as expected. The command displays statistic counters that increases whenever an ACE is matched

Note

Traffic must be generated to verify the operation of the ACL

References

https://www.cisco.com/c/en/us/support/docs/security/ios-firewall/23602-confaccesslists.html
